Carnarvon Evening Darner (Telephlebia undia)

The Carnarvon Evening Darner (Telephlebia undia) is a dragonfly species of the family Telephlebiidae and Brachytronidae, which contains 37 species in Australia.

The identification key to the family Telephlebiidae and Brachytronidae consists of 37 couplets, 6 of which are pertinent to Telephlebia undia. Click on the numbers on the right to display the corresponding couplets. Or click on the ALLin1 button to see all the relevant couplets together in a single, scrollable window.

#FamilySpeciesCouplet No.
 Telephlebiidae and BrachytronidaeCarnarvon Evening Darner
(Telephlebia undia)
  • Telephlebiidae: Key couplet 1 of 37

  • couplet drawing
  • ● Crossveins present in median space
  • a ↑
  • Telephlebiidae: Key couplet 2 of 37

  • couplet drawing

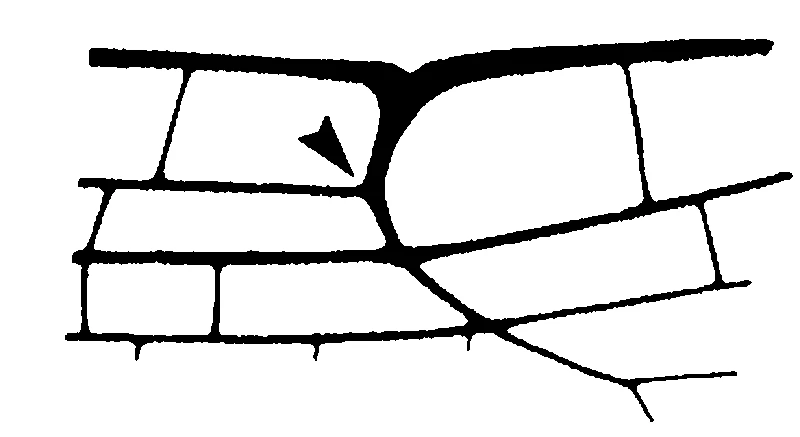

  • ● Subcosta prolonged into first to third cell distal to nodus
  • b ↑
  • Telephlebiidae: Key couplet 3 of 37

  • couplet drawingcouplet drawing
  • ● Top of frons pointed in front
    ● Pterostigma overlying at least five cells

    ⇒ genus: Telephlebia
  • a ↑
  • Telephlebiidae: Key couplet 4 of 37

  • couplet drawing
  • ● Top of frons with narrow dark mark, rounded or almost straight at sides, its base extending to level of antennal bases
  • b ↑
  • Telephlebiidae: Key couplet 6 of 37

  • couplet drawing
    couplet drawing
    couplet drawingcouplet drawingcouplet drawing

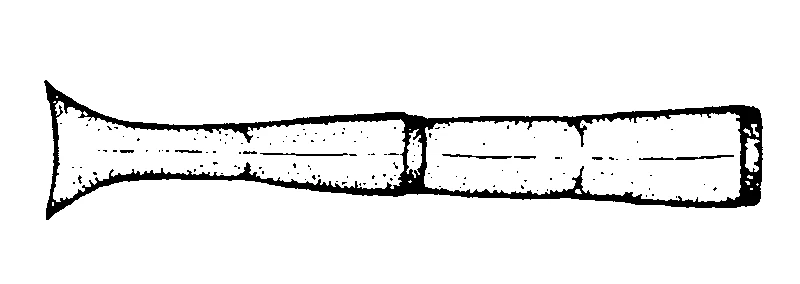

  • ● Waist on abdominal segment 3 of male little narrower than that on segment 4

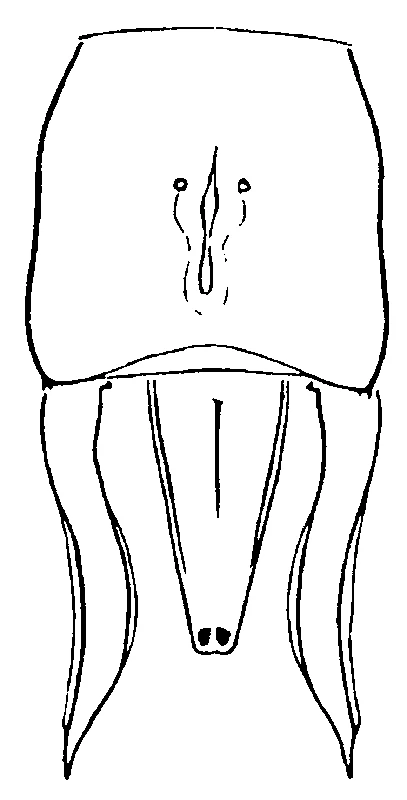

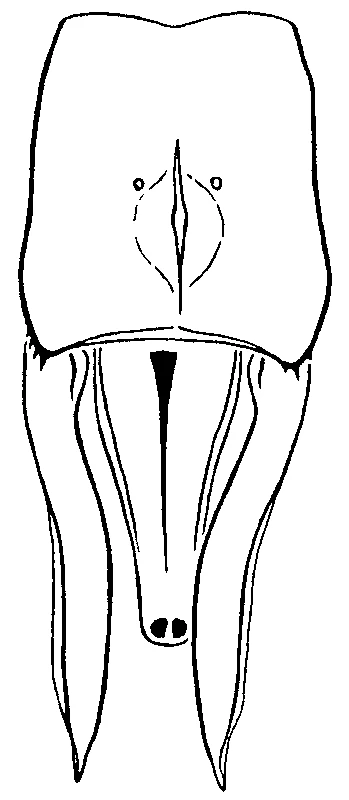

    ● Abdominal segment 4 of female markedly constricted
    ● Tips of superior anal appendages of male pointed but not convergent
  • b ↑
  • Telephlebiidae: Key couplet 7 of 37

  • couplet drawingcouplet drawing
    couplet drawing

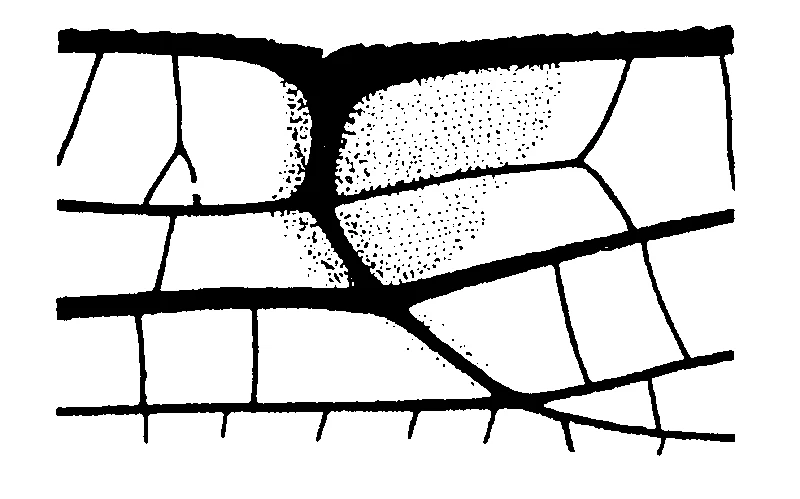

  • ● Wings with basal and nodal markings widely separated, nodal mark extending behind radius only as a narrow band along subnodus
    ● Top of frons with narrow pentagonal dark mark in male, irregularly-shaped mark in female
    ● Superior anal appendages only slightly longer than inferior appendage, or larger than greatest width of tergum 10

    ⇒ species: Carnarvon Evening Darner (Telephlebia undia)
  • a ↑
1
  • Telephlebiidae: Key couplet 1 of 37

  • couplet drawing
  • ● Crossveins present in median space
a ↑
b ↓
  • couplet drawing
  • ● No crossveins in median space

2
  • Telephlebiidae: Key couplet 2 of 37

  • couplet drawing
  • ● Subcosta ending at nodus

    ⇒ species: Wide-Faced Darner (Dendroaeschna conspersa)
a ↑
b ↓
  • couplet drawing
  • ● Subcosta prolonged into first to third cell distal to nodus

3
  • Telephlebiidae: Key couplet 3 of 37

  • couplet drawingcouplet drawing
  • ● Top of frons pointed in front
    ● Pterostigma overlying at least five cells

    ⇒ genus: Telephlebia
a ↑
b ↓
  • couplet drawingcouplet drawing
  • ● Top of frons rounded in front
    ● Pterostigma overlying no more than three cells

    ⇒ species: Terrestrial Evening Darner (Antipodophlebia asthenes)

4
  • Telephlebiidae: Key couplet 4 of 37

  • couplet drawing
  • ● Top of frons with wide, subtriangular dark mark, almost extending to outer edge
a ↑
b ↓
  • couplet drawing
  • ● Top of frons with narrow dark mark, rounded or almost straight at sides, its base extending to level of antennal bases

5
  • Telephlebiidae: Key couplet 6 of 37

  • couplet drawing
    couplet drawingcouplet drawing
  • ● Waist on abdominal segment 3 of male markedly narrower than that on segment 4

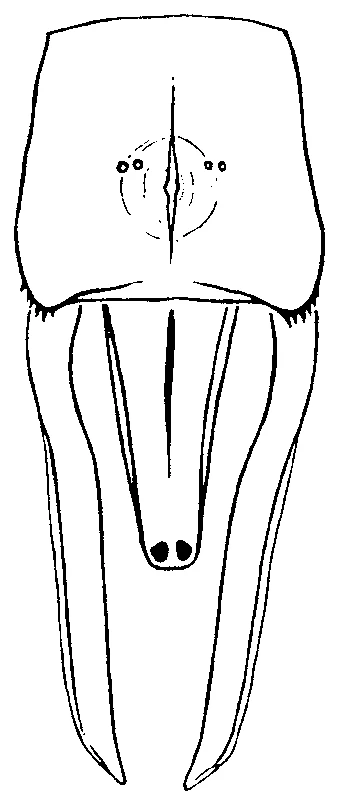

    ● Abdominal segment 4 of female almost parallel-sided
    ● Tips of superior anal appendages of male pointed and convergent

    ⇒ species: Northern Evening Darner (Telephlebia cyclops)
a ↑
b ↓
  • couplet drawing
    couplet drawing
    couplet drawingcouplet drawingcouplet drawing
  • ● Waist on abdominal segment 3 of male little narrower than that on segment 4
    ● Abdominal segment 4 of female markedly constricted
    ● Tips of superior anal appendages of male pointed but not convergent

6
  • Telephlebiidae: Key couplet 7 of 37

  • couplet drawingcouplet drawing
    couplet drawing
  • ● Wings with basal and nodal markings widely separated, nodal mark extending behind radius only as a narrow band along subnodus
    ● Top of frons with narrow pentagonal dark mark in male, irregularly-shaped mark in female
    ● Superior anal appendages only slightly longer than inferior appendage, or larger than greatest width of tergum 10

    ⇒ species: Carnarvon Evening Darner (Telephlebia undia)
a ↑
b ↓
  • couplet drawingcouplet drawing
    couplet drawingcouplet drawing
  • ● Wings with basal and nodal markings connected or separated, nodal mark extensive behind radius
    ● Top of frons with almost circular dark mark
    ● Superior anal appendages of male considerably longer than inferior appendage, and larger than greatest width of tergum 10

Australian distribution
