Rainforest Vicetail (Hemigomphus theischingeri)

The Rainforest Vicetail (Hemigomphus theischingeri) is a dragonfly species of the family Gomphidae, which contains 35 species in Australia.

The identification key to the family Gomphidae consists of 47 couplets, 12 of which are pertinent to Hemigomphus theischingeri. Click on the numbers on the right to display the corresponding couplets. Or click on the ALLin1 button to see all the relevant couplets together in a single, scrollable window.

#FamilySpeciesCouplet No.
 GomphidaeRainforest Vicetail
(Hemigomphus theischingeri)
  • Gomphidae: Key couplet 1 of 47

  • couplet drawingcouplet drawing
  • ● Generally no incomplete antenodal crossvein proximal to Ax1 in any wing
    ● End of abdomen not elongate, mid-dorsal length of abdominal tergum 9 less than 2.3 mm in male, 2.1 mm in female
  • b ↑
  • Gomphidae: Key couplet 10 of 47

  • couplet drawingcouplet drawing
    couplet drawingcouplet drawing
    couplet drawingcouplet drawing
  • ● Superior anal appendages converging at tips, bearing basal, ventral to lateral spine or toothed spur
  • b ↑
  • Gomphidae: Key couplet 11 of 47

  • couplet drawingcouplet drawing
  • ● Upper projection of bipartite sternum 11 concealed by basal, toothed spine of superior anal appendage
    ○ From eastern and northern Australia

    ⇒ genus: Hemigomphus
  • a ↑
  • Gomphidae: Key couplet 12 of 47

  • couplet drawingcouplet drawing
  • ● Abdominal sternites 7 and/or 8 each with pair of strong, central setal tufts protruding below ventral carina
  • b ↑
  • Gomphidae: Key couplet 13 of 47

  • couplet drawing
    couplet drawingcouplet drawing
  • ● Tip of superior appendage abruptly folded inward
    ● Setal tufts present or absent on sternite 7
  • b ↑
  • Gomphidae: Key couplet 16 of 47

  • couplet drawing

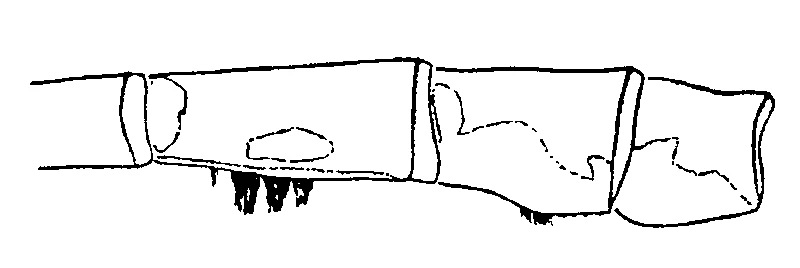

  • ● Setal tufts present on sternite 7
  • b ↑
  • Gomphidae: Key couplet 17 of 47

  • couplet drawing

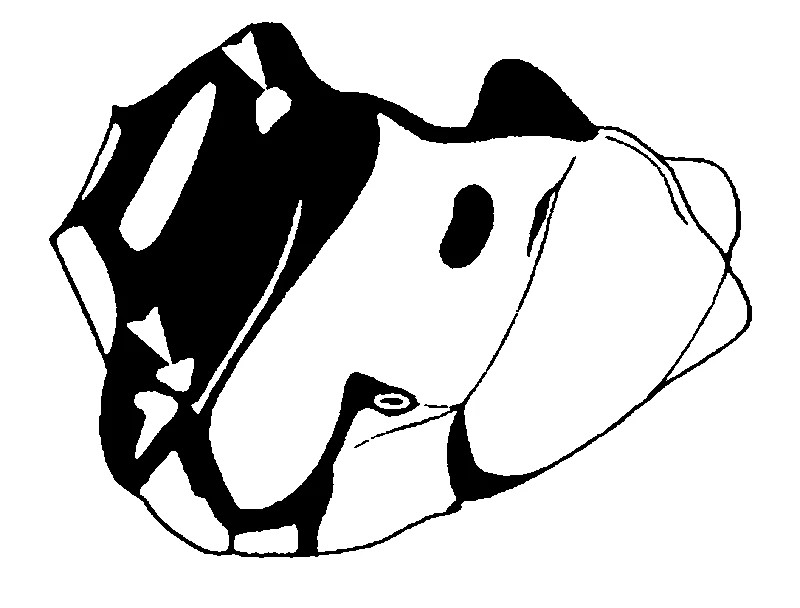

  • ● Humeral stripe yellowish green, usually continuous, sometimes broken in upper half, forming upper spot and lower stripe

    ⇒ species: Rainforest Vicetail (Hemigomphus theischingeri)
  • a ↑
  • Gomphidae: Key couplet 19 of 47

  • couplet drawing
  • ● Anterior part of abdominal segments 3 and 4, in front of supplementary transverse carina, with broad, mid-dorsal black patch or band
  • a ↑
  • Gomphidae: Key couplet 20 of 47

  • couplet drawing
  • ● Ovipositor less than half length of sternum 9
  • b ↑
  • Gomphidae: Key couplet 21 of 47

  • couplet drawing
  • ● Two or three (occasionally one) crossveins between sectors of arculus proximal to fork of Rs in hindwing
    ○ From eastern and northern Australia

    ⇒ genus: Hemigomphus
  • b ↑
  • Gomphidae: Key couplet 22 of 47

  • couplet drawingcouplet drawing
  • ● Occiput armed with central, more or less upright spine
  • a ↑
  • Gomphidae: Key couplet 23 of 47

  • couplet drawing

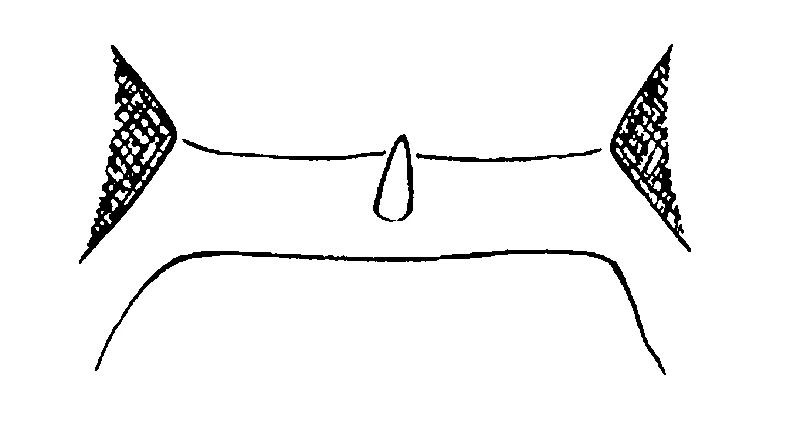

  • ● Occiput spine slender, upright or slanting slightly to front

    ⇒ species: Rainforest Vicetail (Hemigomphus theischingeri)
  • b ↑
1
  • Gomphidae: Key couplet 1 of 47

  • couplet drawingcouplet drawing
  • ● Incomplete (subcostal) antenodal crossvein proximal to Ax1 usually present in forewings, sometimes lacking in hindwings
    ● End of abdomen elongate, mid-dorsal length of abdominal tergum 9 more than 2.4 mm in male, 2.3 mm in female

    ⇒ genus: Antipodogomphus
a ↑
b ↓
  • couplet drawingcouplet drawing
  • ● Generally no incomplete antenodal crossvein proximal to Ax1 in any wing
    ● End of abdomen not elongate, mid-dorsal length of abdominal tergum 9 less than 2.3 mm in male, 2.1 mm in female

2 Male only
  • Gomphidae: Key couplet 10 of 47

  • couplet drawingcouplet drawing
  • ● Superior anal appendages parallel or divergent, not converging at tips, each bearing a long, curved ventrobasal branch
a ↑
b ↓
  • couplet drawingcouplet drawing
    couplet drawingcouplet drawing
    couplet drawingcouplet drawing
  • ● Superior anal appendages converging at tips, bearing basal, ventral to lateral spine or toothed spur

3 Male only
  • Gomphidae: Key couplet 11 of 47

  • couplet drawingcouplet drawing
  • ● Upper projection of bipartite sternum 11 concealed by basal, toothed spine of superior anal appendage
    ○ From eastern and northern Australia

    ⇒ genus: Hemigomphus
a ↑
b ↓
  • couplet drawingcouplet drawing
    couplet drawingcouplet drawing
  • ● Upper projection of bipartite sternum 11 lying outside base of superior anal appendage, its upper end turned to rear and toothed or sculptured

4 Male only
  • Gomphidae: Key couplet 12 of 47

  • couplet drawing
  • ● Abdominal sternites 7 and 8 lacking strong, central tufts of setae

    ⇒ species: Kakadu Vicetail (Hemigomphus magela)
a ↑
b ↓
  • couplet drawingcouplet drawing
  • ● Abdominal sternites 7 and/or 8 each with pair of strong, central setal tufts protruding below ventral carina

5 Male only
  • Gomphidae: Key couplet 13 of 47

  • couplet drawingcouplet drawing
  • ● Tip of superior appendage smoothly curved inwards
    ● Setal tufts on sternite 7 and 8
a ↑
b ↓
  • couplet drawing
    couplet drawingcouplet drawing
  • ● Tip of superior appendage abruptly folded inward
    ● Setal tufts present or absent on sternite 7

6 Male only
  • Gomphidae: Key couplet 16 of 47

  • couplet drawing
  • ● Setal tufts lacking from sternite 7

    ⇒ species: Zebra Vicetail (Hemigomphus comitatus)
a ↑
b ↓
  • couplet drawing
  • ● Setal tufts present on sternite 7

7 Male only
  • Gomphidae: Key couplet 17 of 47

  • couplet drawing
  • ● Humeral stripe yellowish green, usually continuous, sometimes broken in upper half, forming upper spot and lower stripe

    ⇒ species: Rainforest Vicetail (Hemigomphus theischingeri)
a ↑
b ↓
  • couplet drawing

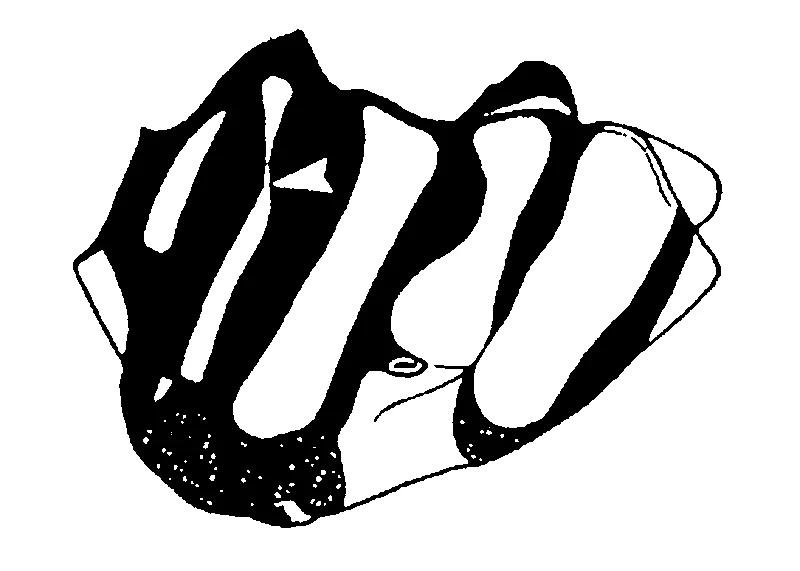

  • ● Yellow humeral stripe reduced to small upper and lower spots

    ⇒ species: Wallum Vicetail (Hemigomphus cooloola)

8 Female only
  • Gomphidae: Key couplet 19 of 47

  • couplet drawing
  • ● Anterior part of abdominal segments 3 and 4, in front of supplementary transverse carina, with broad, mid-dorsal black patch or band
a ↑
b ↓
  • couplet drawing
    couplet drawing
    couplet drawing
  • ● Anterior of abdominal segments 3 and 4 with mid-dorsal yellow band, sometimes narrow, or entirely yellow

9 Female only
  • Gomphidae: Key couplet 20 of 47

  • couplet drawing
  • ● Ovipositor about as long as sternum 9

    ⇒ species: Pinchtail (Odontogomphus donnellyi)
a ↑
b ↓
  • couplet drawing
  • ● Ovipositor less than half length of sternum 9

10 Female only
  • Gomphidae: Key couplet 21 of 47

  • couplet drawing
  • ● One crossvein between sectors of arculus proximal to fork of Rs in hindwing
    ○ From south-western Australia

    ⇒ species: Armourtail (Armagomphus armiger)
a ↑
b ↓
  • couplet drawing
  • ● Two or three (occasionally one) crossveins between sectors of arculus proximal to fork of Rs in hindwing
    ○ From eastern and northern Australia

    ⇒ genus: Hemigomphus

11 Female only
  • Gomphidae: Key couplet 22 of 47

  • couplet drawingcouplet drawing
  • ● Occiput armed with central, more or less upright spine
a ↑
b ↓
  • couplet drawingcouplet drawing
  • ● Occiput unarmed

12 Female only
  • Gomphidae: Key couplet 23 of 47

  • couplet drawing
  • ● Occiput spine stout, irregular conical, slanting rearwards

    ⇒ species: Zebra Vicetail (Hemigomphus comitatus)
a ↑
b ↓
  • couplet drawing
  • ● Occiput spine slender, upright or slanting slightly to front

    ⇒ species: Rainforest Vicetail (Hemigomphus theischingeri)

Australian distribution
